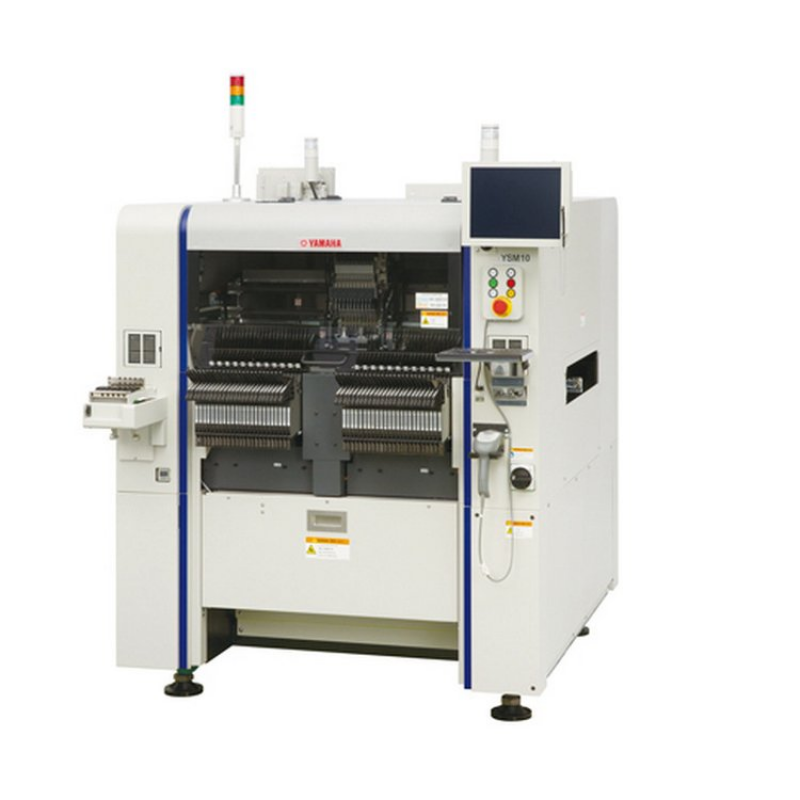

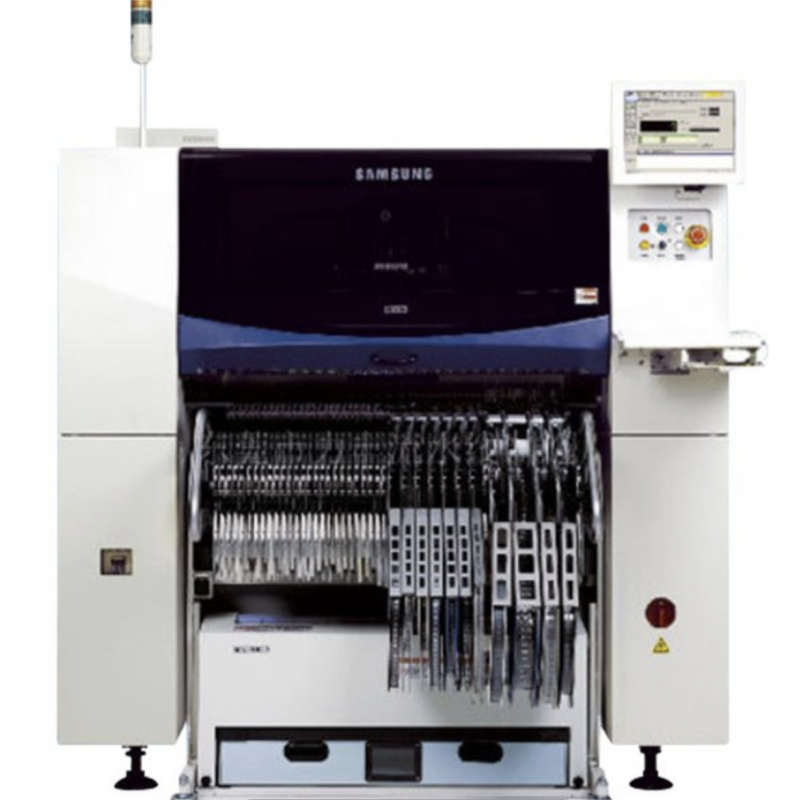

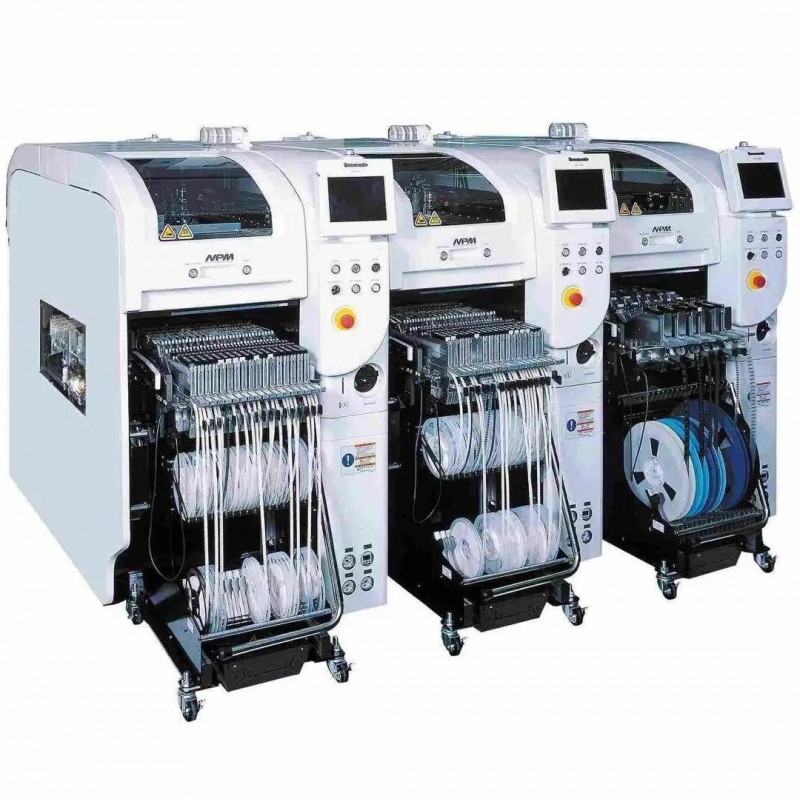

High-speed SMT Mounter

Key Features

l Ultra-High Placement Speed Achieves placement speeds of up to 98,000–120,000 CPH in high-efficiency mode, dramatically increasing production throughput for high-volume manufacturing .

l High-Precision Placement Placement accuracy reaches ±0.015mm (Cpk ≥ 1.0) in high-accuracy mode, ensuring reliable assembly of ultra-small components down to 0201/03015 sizes .

l Advanced Vision Alignment System Equipped with high-frame-rate megapixel industrial cameras and real-time flying vision technology, enabling accurate identification of both standard and irregular-shaped components during high-speed operation .

l Flexible Configuration Options Modular design supports multiple placement head types (turret, in-line) and dual-lane configurations, allowing simultaneous production of two different PCB types for maximum line flexibility .

l Intelligent Process Control Features component verification before placement, including component presence detection, polarity check, coplanarity inspection for ICs, and optional LCR measurement for passive components .

l Large Capacity Feeder System Supports up to 128–130 feeder stations, with auto-loading trolleys and splice feeders to minimize changeover time and enable long-running production without frequent interruptions .

Technical Parameters

l Placement Speed (Max) 80,000 – 120,000 CPH (depending on head configuration)

l Placement Accuracy (High Accuracy Mode) ±0.015mm – ±0.035mm (Cpk ≥ 1.0)

l Component Size Range 0201 / 03015 up to W55 × L100 × H30mm

l PCB Size Range (Single Lane) L50 × W50mm up to L810 × W610mm

l PCB Size Range (Dual Lane) L50 × W50mm up to L810 × W330mm

l Number of Nozzles 5–18 per head (multiple head configurations available)

l Feeder Capacity Up to 128 stations (8mm tape feeder equivalent)

l Power Supply Three-phase AC 200–416V ±10%, 50/60Hz

l Machine Weight Approx. 1,700 – 2,250 kg
