Key Features

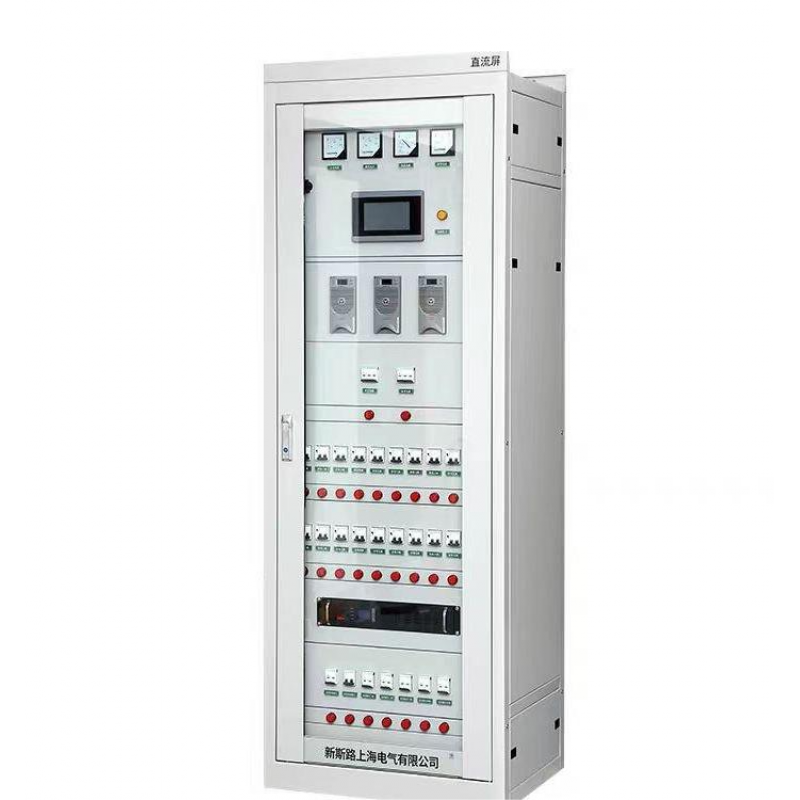

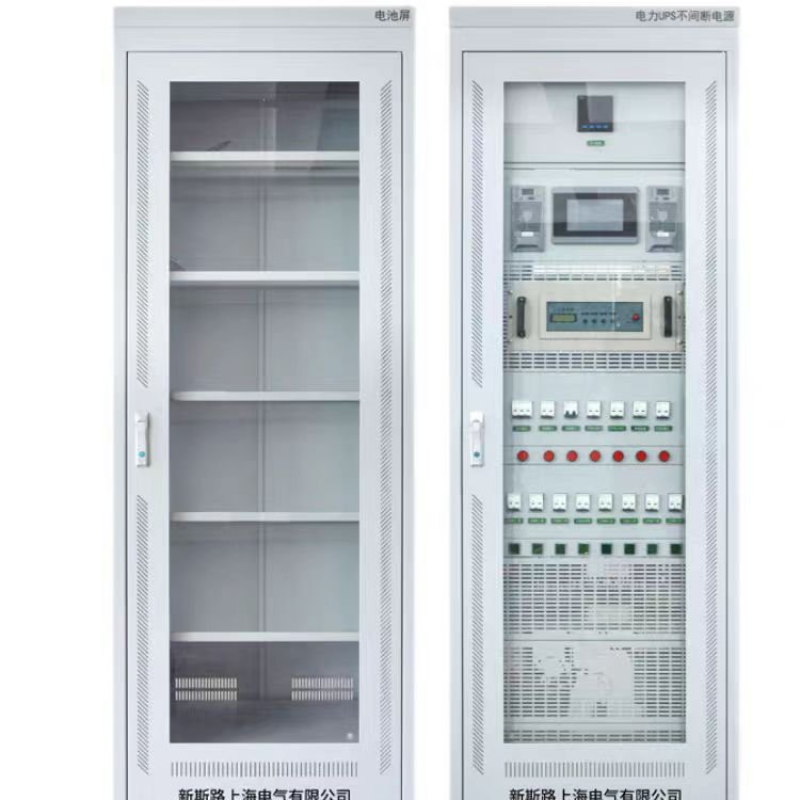

l Integrated Cabinet Design Vertical cabinet structure with all-in-one integration of rectification, battery management, monitoring, and distribution modules. Saves floor space and simplifies on-site installation and maintenance .
l High-Frequency Rectification Uses high-frequency switching power supply technology with efficiency up to 95% and power factor above 0.99. Equipped with N+1 redundancy for high reliability .
l Intelligent Battery Management Real-time battery voltage, current, temperature monitoring, and automatic equalized charging management. Provides automatic temperature compensation to extend battery life .
l Touchscreen HMI & Remote Monitoring Equipped with a 7–10 inch color touchscreen for real-time data display and parameter setting. Supports RS485, Ethernet, and other communication protocols for integration with SCADA and energy management systems .

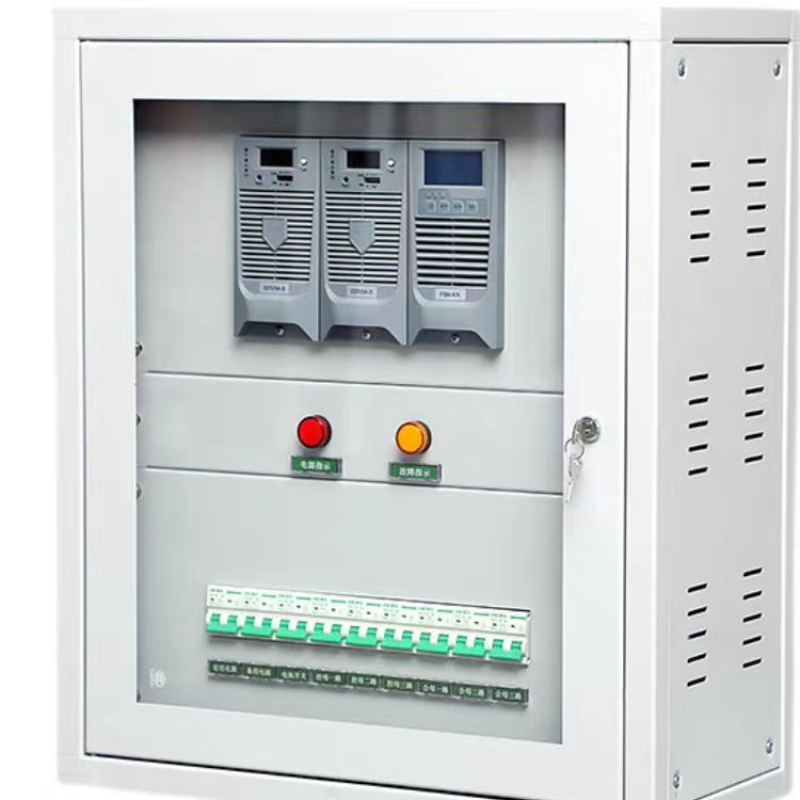

l Modular Design & Easy Expansion Rectifier and monitoring modules adopt a plug-in structure, making on-site replacement and capacity expansion convenient. Parallel operation of multiple cabinets is supported .
l Comprehensive Protection Functions Integrated protection features include overvoltage, undervoltage, overcurrent, short circuit, reverse polarity, and lightning protection. Dual power input or bypass options are available for enhanced system reliability .
Technical Parameters
l Input Voltage AC 380V ±20% (three-phase four-wire) or AC 220V ±20%
l Output Voltage Range DC 110V / 220V (adjustable)
l Rated Output Current 10A – 600A (configurable based on modules)
l Rectifier Module Power 5kW – 20kW per module (modular combination)
l Battery Capacity 38Ah – 3000Ah (lead-acid or lithium battery, configurable)
l Efficiency ≥ 95% (at rated load)
l Communication Protocols RS485, Modbus RTU, Modbus TCP, IEC 61850 (optional)
l Cooling Method Natural cooling or intelligent fan cooling
l Protection Level IP30 – IP42 (customizable)
l Operating Environment -10°C – 45°C, relative humidity ≤ 90% (non-condensing)

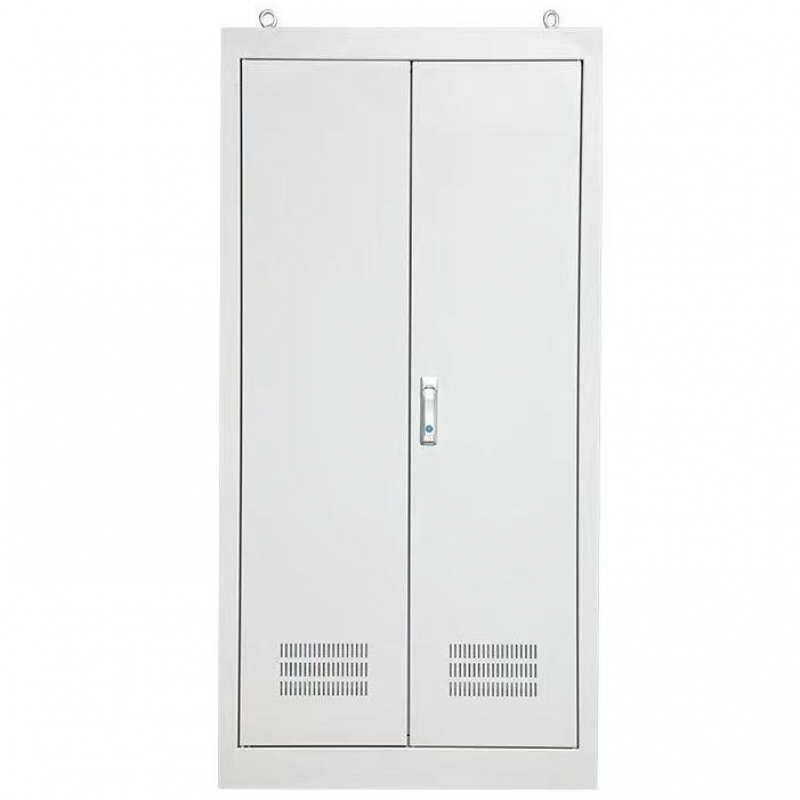

l Cabinet Dimensions (W×D×H) 800×600×2260 mm (standard) / customizable
l Color RAL 7035 / customized
